Established in 1983
Exporting to over thirty
countries around the world.
Factory area of 10,000 M² |
|

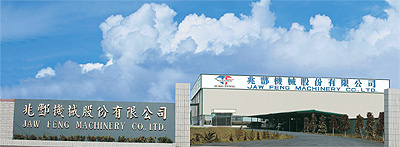

JAW FENG MACHINERY CO., LTD. was established in 1983, and has enjoyed an excellent reputation
as a Professional manufacturer of vacuum sealing &
packaging machines. Market demands have pushed the
company toward an international and technology driven
strategy. To date, we have developed more than twenty different kinds of specific machines, for application in
factories ranging from small-shop to large-scale production.
Regardless of the specifications of the cast parts and
modules, our machinery allows for manufacturing
standardization. This allows the parts produced to be applied
to a wide range of machinery. We continually work to improve
precision, lower maintenance requirements, and increase the
machines' working life. |
|
|
Our insistence of the ideal: "Quality and technology are the
basis of all enterprise" has endured since the
founding of the company. Consequently, our equipment has been
praised and adopted by many manufacturers around the world. We
provide our customers with the widest range of uses, enhancing
their production efficiency, and thereby increasing our sales
and reputation. More importantly, our machinery has been
successfully put into production in many countries around the
world. Our transformation into an international enterprise is
based on the standardization, productivity and
internationalization of our production and sales
system. |
A Specialist in Vacuum
Packaging Machine |
|
|
|
HIGH SPEED AND HEAVY DUTY
AUTOMATIC VACUUM MACHINE
WITH
CONTINUOUS SEQUENCE
PRODUCTION LINE |
HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE
PRODUCTION
LINE
|
AUTOMATIC VACUUM MACHINE
PRODUCTION LINE |
|
CATALOGO BASICO - NEW DIAMOND |
| |
• TABLE TOP
AUTOMATIC VACUUM MACHINE
• HEAVY DUTY AUTOMATIC VACUUM
MACHINE
• FREE STANDING AUTOMATIC VACUUM
MACHINE
• HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE
• HIGH SPEED AND HEAVY DUTY
AUTOMATIC VACUUM MACHINE WITH CONTINUOUS
SEQUENCE
• BRICK FORMING VACUUM MACHINE
FOR GUSSET BAG WITH PREFORMED SQUARE
BOTTOM
• TRAY SEALER WITH VACUUM AND
GAS FLUSHING
• HEAVY DUTY EXTERNAL VACUUM
SEALING AND PACKAGING MACHINE |
Modernize Manufacturing Lines International
Quality Control
Jaw Feng employs their Standardization Production Line
system to upgrade working efficiency and reduce
costs.
Moreover, our technicians possess the highest
skills and have vast experience using our rigorous Quality
Inspection Standards. They inspect and test every detail, at
each stage of production, to achieve our Quality Control End
and to conform with ISO International Quality
Standards |
|
| |
|
|
|
|
|
|
J-V001 |
|
TABLE TOP
AUTOMATIC VACUUM MACHINE |
|
|
J-V002 |
|
TABLE TOP
AUTOMATIC VACUUM MACHINE |
|
|

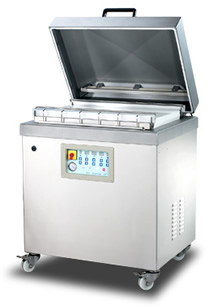

J-V005 |
|
HEAVY DUTY AUTOMATIC VACUUM
MACHINE |
|
|
|

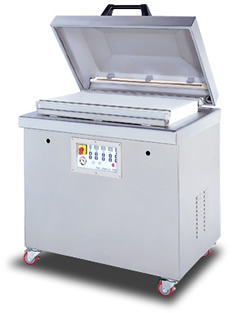

J-V006 |
|
|
J-V006W |
|
HEAVY DUTY AUTOMATIC VACUUM
MACHINE |
|
J-V006
 |
|
J-V006W
 |
Features
• Fully stainless steel construction,
features maximum durability and convenient cleaning.
Transparent upper lid provides clear visibility for
packaging operations.
• Highly efficient European vacuum
pump.
10
programmable memories setting system, individual display
provides easy reading and operating.
Ideal for applications in production
factories, research departments and laboratories.
Functions
• Maintain
food's freshness and original flavor. Anti-spoiling.
• Prolong
product's shelf-life.
• Prevent
electronic and hardware parts from oxidization.
• Available
for solid, Powdery and liquid products.
Applications
• Fresh meat,
seafood, pickled vegetables, agricultural products, tea
leaves, herbs, powder, spices, beanpaste and prepared
foods...etc.
• Electronic
parts, hardware products, medical instruments, medicine,
clothing or blankets...etc.
Specifications
|
|
| Model |
J-V001N |
J-V002 |
J-V005 |
J-V006 |
J-V006w |
| Machine
dimension |
362 x 450 x 385
mm |
490 x 540 x 510
mm |
770 x 620 x 985
mm |
920 x
675 x 1015 mm |
920 x
800 x 1015 mm |
| Chamber
dimension |
315 x 345 x 100
mm |
435 x 420 x 170
mm |
710 x 530 x 155
mm |
840 x
560 x 180 mm |
840 x 710 x 230 mm |
| Sealing
length |
300 mm x
1 |
420 mm x 1 |
680mmx2 or 500mmx2 |
800mmx2 or 520mmx2 |
800mmx 1 , 610mmx 1 |
Options
(Chamber Height) |
Gas
Flushing |
Gas
Flushing |
|
Gas
Flushing |
|
230,250 mm |
230,250 mm |
250
mm |
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|

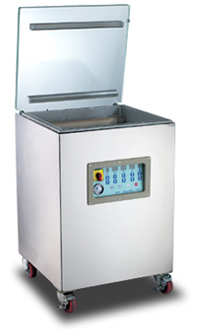

J-V002D |
|
HEAVY DUTY AUTOMATIC VACUUM
MACHINE |
|
|

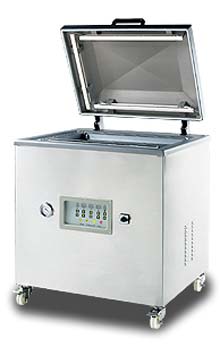

J-V004D |
|
HEAVY DUTY AUTOMATIC VACUUM
MACHINE |
|
|

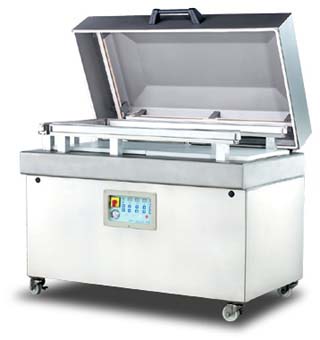

J-V008D |
|
HEAVY DUTY AUTOMATIC VACUUM
MACHINE |
|
|

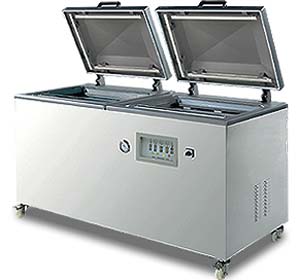

J-V011D |
|
HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE |
|
|
Features
• Fully stainless steel construction features
maximum durability and convenient cleaning.
• Highly efficient European vacuum pump.
Microcomputer control system is waterproof.
10 programmable
memories setting system, individual display provides easy reading
and operating.
• Deep vacuum chamber with big space allows
stand-up product packaging . Equipped with castors with brake for
easy moving.
• Designed for big and stand-up packaging products.
Functions
• Maintain food's freshness and original
flavor.
Anti-spoiling.
• Prolong product's shelf-life.
• Prevent electronic and hardware parts from
oxidization.
• Available for solid, Powdery and liquid products.
Applications
• Fresh meat, seafood, pickled vegetables,
agricultural products, tea leaves, herbs, powder, spices,
beanpaste and prepared foods...etc.
• Electronic parts, hardware products, medical
instruments, medicine, clothing or blankets...etc.
■ The double
chambers machine produces a higher efficiency level than a single
machine as the loading and unloading can be accomplished while the
other chamber is vacuuming. With a single chamber, you have to wait
until the cycle is finished before doing the next vacuum process.
Specifications |
|
| Model |
J-V002D |
J-V004D |
J-V008D |
J-V011D |
| Machine
dimension |
550 x 570 x 825
mm |
835 x 760 x 1030
mm |
1240 x 790 x 1030
mm |
1650 x 760 x 1030
mm |
| Chamber
dimension |
470 x 420 x 260
mm |
720 x 530 x 335
mm |
1170 x 660 x 280
mm |
720 x 530 x 335 mm x
2 |
| Sealing
length |
450 mm x 2 |
610mmx2 , 500mmx1 |
1050 mmx2 , 610mmx1 |
610 mmx4, 500mmx2 |
Options
|
Gas
Flushing |
Gas
Flushing |
Gas
Flushing |
Gas
Flushing |
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|

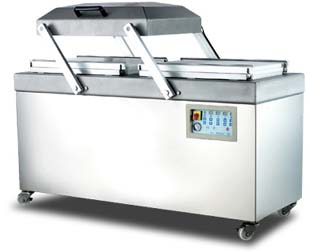

J-V012 |
|
|
J-V012W |
|
HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE |
|
J-V012
 |
J-V012W
 |

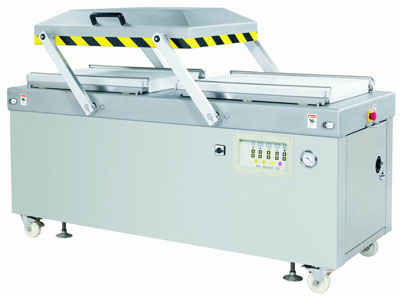

J-V013 |
|
|
J-V013A |
|
HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE |
|
|

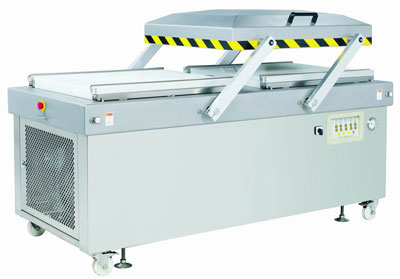

J-V016A |
|
HEAVY DUTY DOUBLE CHAMBERS
AUTOMATIC VACUUM MACHINE |
|
|
Features
• Fully stainless steel construction. Platen
type table ensures easy cleaning and product handling -
without space restriction.
• Two vacuum chambers configuration permits
alternative operations for one operator. To decrease waiting
time of opening the cover for upgrading packaging
efficiency.
• Highly efficient European vacuum pump.
10
programmable memories setting system, individual display
provides easy reading and operating.
• Equipped with casters with brake for easy
moving.
• Microcomputer control system &
electrical panel are waterproof.
Functions
• Maintain food's freshness and original
flavor. Anti-spoiling.
• Prolong product's shelf-life.
• Prevent electronic and hardware parts from
oxidization.
• Available for solid, Powdery and liquid
products.
Applications
• Fresh meat, seafood, pickled vegetables,
agricultural products, tea leaves, herbs, powder, spices,
bean paste and prepared foods...etc.
• Electronic parts, hardware products,
medical instruments, medicine, clothing or blankets...etc.
Specifications |
|
| Model |
J-V012 |
J-V012W |
J-V013 J-V013A |
J-V016A |
| Machine
dimension |
1700 x 710 x 1000 mm |
1700 x 860 x 1020 mm |
1933 x 800 x 1010
mm |
920 x
675 x 1015 mm |
| Chamber
dimension |
870 x 560 x 180 mmx2 |
870 x 710 x 200 mmx2 |
960 x 655 x 180 mm x
2 |
840 x
560 x 180 mm |
| Sealing
length |
680 mm x 4 |
680 mm x 4 |
780 mm x
4 |
800mmx2 or 520mmx2 |
Options
(Chamber Height) |
Gas
Flushing Bag Cut Off |
200, 230, 250 mm |
230, 250, 300 mm |
230, 250, 300 mm |
230, 250, 300mm |
|
| |
|
J-V013A, J-V016A: |
1. Pneumatic auto lifting arm for lid
closing and opening system
|
| |
|
|
2. There are 2
options : semi system or auto system |
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|

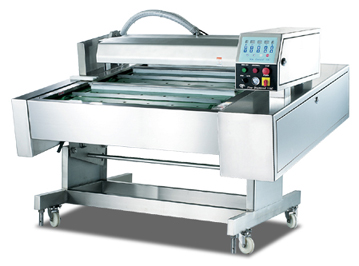

J-V021 |
|
|
|
|
|
|
|
J-V022 |
|
HIGH SPEED AND HEAVY DUTY
AUTOMATIC VACUUM MACHINE WITH CONTINUOUS
SEQUENCE
|
|
|

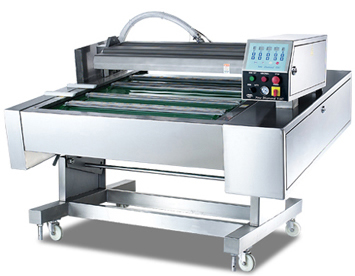

J-V023 |
|
|
|
|
|
|
|
J-V024 |
|
HIGH SPEED AND HEAVY DUTY
AUTOMATIC VACUUM MACHINE WITH CONTINUOUS
SEQUENCE |
|
J-V023
 |
J-V024
 |
Features
• Fully stainless steel construction features maximum durability and convenient cleaning.
• The front and rear end can be equipped with an automatic conveyor to make an automatic production line.
• Equipped with a conveyor belt, the machine can perform continuous operation. This greatly upgrades production output and saves manpower and time.
• In case of packing plenty of liquid products, To adjust the angle of the conveyor table to prevent the product overflowing.
• The conveyor belt features automatic washing which is conveniently done by simply connecting it to a water hose.
• Stainless steel chain meets food sanitation requirements and ensures product quality.
• Highly efficient European vacuum pump. Microcomputer control system is waterproof.
10 programmable memories setting system, individual display provides easy reading and operating.
• Applicable for various mass production factories.
Functions
• Maintain food's freshness and original flavor. Anti-spoiling.
• Prolong product's shelf-life.
• Prevent electronic and hardware parts from oxidization.
• Available for solid, Powdery and liquid products.
Applications
• Fresh meat, seafood, pickled vegetables, agricultural products, tea leaves, herbs, powder, spices, bean paste and prepared foods...etc.
• Electronic parts, hardware products, medical instruments, medicine, clothing or blankets...etc.
Specifications |
|
| Model |
J-V021 |
J-V022 |
J-V023 |
J-V024 |
| Machine
dimension |
1775 x 1540 x 1450 mm |
1775 x 1540 x 1480 mm |
1775 x 1670 x 1450 mm |
1775 x 1670 x 1450 mm |
| Chamber
dimension |
1105 x 465 x 80 mm |
1105 x 465 x 120 mm |
1105 x 515 x 80 mm |
1105 x 515 x 80 mm |
| Sealing
length |
1050 mm x 1 |
1050 mm x 1 |
1050 mm x 1 |
1050 mm x 2 |
Options
|
Gas Flushing , Water Cooling |
"Producing Data" printing |
|
